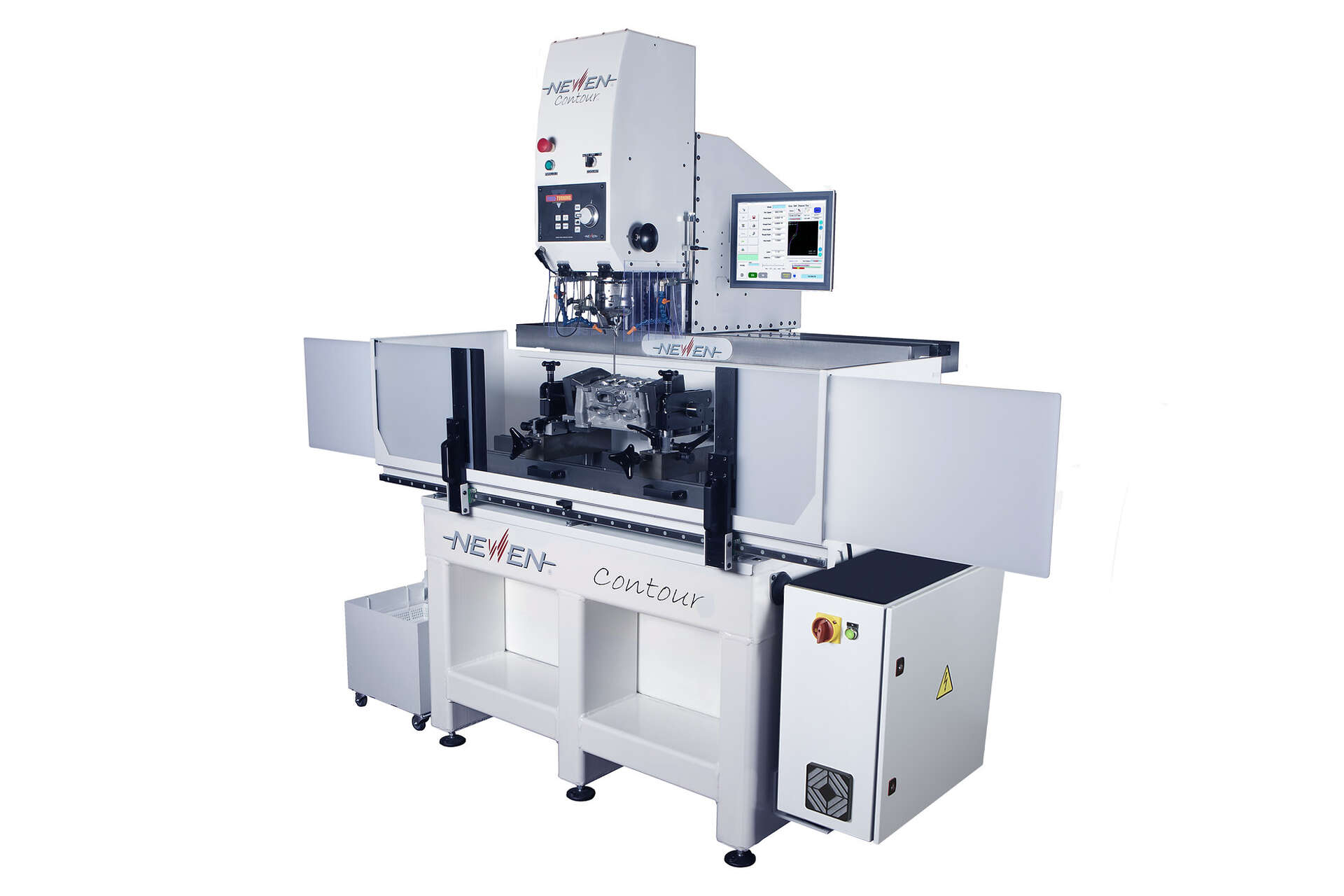

CONTOUR-CS - 2-axis CNC single-point machine with valve seat and guide - NEWEN CONTINUOUS TURNING machining process (PATENTED) [15Kg] (2.185/1.312x2.15mm), id: 11026

NEWEN® CONTOUR™

axial, single point CNC machine

for machining valve seats and guides.


MACHINING PROCESS (PATENTED):
NEWEN FIXED-TURNING®

---

X-axis, head travel - 1240mm
Y axis, head travel - 70mm
Z axis, head travel - 250mm

---

Y axis, parallel prism travel - 163mm
Z axis, spindle sleeve extension - 75mm
X axis, carriage travel - 11mm

---

Maximum profile length (from inner to outer diameter) - 22mm
Maximum profile length (Z axis) - 75mm
Dimensions of supported valve seats (available sockets) - 13.50mm-80.00+mm
Dimensions of supported valve guides - max. diameter 12mm, length 65mm

FIXED-TURNING interpolation machining completely eliminates all the distortions shown in figures 1 and 2. The occurrence of notches and waves is virtually impossible.

Single-point machining does not allow for this type of distortion to occur. You only need to analyze the principle of nest machining to see for yourself. Machining with a rotating tool moving on two interpolated axes produces perfectly round circular micro-grooves. The depth of the grooves and the distance between them are controlled by the numerical control of the machine, creating the best possible surface.

Significant reduction of cutting resistance (300x and more) and minimization of machining imperfections make FIXED-TURNING rank at the highest level in the quality scale defined by OEM.

---

All NEWEN FIXED-TURNING machines automatically and consistently machine valve seats with deformation no greater than 3 microns (0.003mm). Quality that is the envy of the most reputable and cutting-edge OEMs.

Mark:
•Newen
