CONTOUR-BB - 2-axis CNC machine with single-point seat and valve guide - NEWEN FIXED-TURNING® machining process (PATENTED) [15Kg] (100/230x100mm), id: 10367

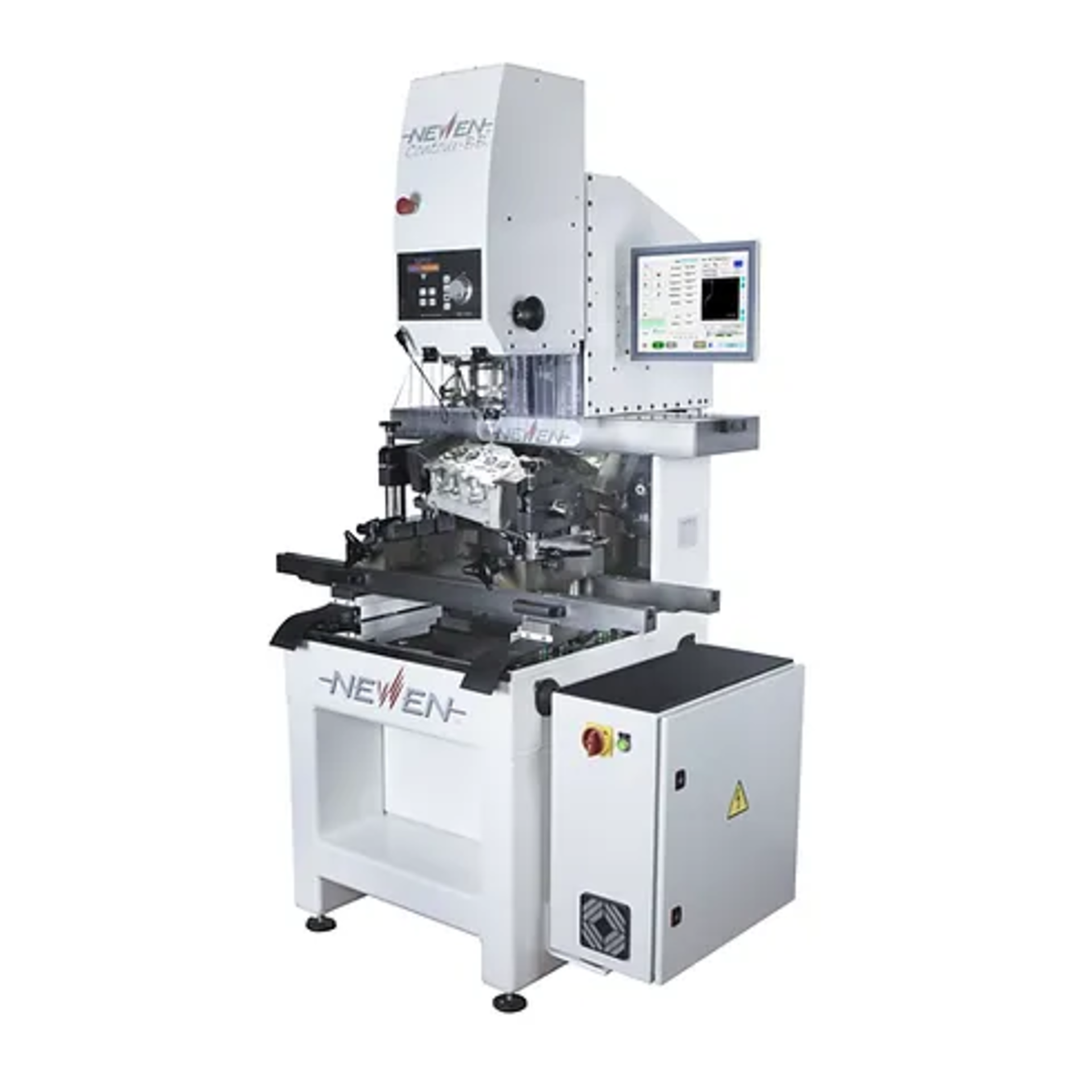

NEWEN® CONTOUR-BB™ axial, single-point CNC machine for machining valve seats and guides. MACHINING PROCESS (PATENTED): NEWEN FIXED-TURNING®

---

X axis, head travel - 760mm Y axis, head travel - 60mm Z axis, head travel - 250mm

---

Y axis, movement of parallel prisms - 100mm Z axis, spindle sleeve travel - 80mm X axis, carriage travel - 11mm

---

Maximum profile length (from inner to outer diameter) - 22mm Maximum profile length (Z axis) - 75mm Dimensions of supported valve seats (available frames) - 13.50mm-80.00+mm Dimensions of supported valve guides - max. diameter 12mm, length 65mm FIXED-TURNING interpolation machining completely eliminates all distortions shown in drawings 1 and 2. The occurrence of corrugations and waving is virtually impossible. Single-point processing does not allow this type of distortion to occur. You only need to analyze the principle of socket machining to see for yourself. Machining with a rotating tool moving in two interpolated axes produces perfectly round circular micro-grooves. The depth of the furrows and the distance between them is controlled by the numerical control of the machine, creating the best possible surface. Significant reduction of cutting resistance (300x and more) and minimization of machining imperfections make FIXED-TURNING positioned at the highest level on the quality scale defined by the OEM.

---

All NEWEN FIXED-TURNING machines automatically and regularly process valve seats with deformations not exceeding 3 microns (0.003 mm). Quality that is the envy of the most reputable and cutting-edge OEMs.
